| CPU Card Selection: SDM300-S |
| CPU | Quad-core Intel® Pentium® N4200 1.1GHz processor or Dual-core Intel® Celeron® N3350 1.1GHz processor (depends on CPU Card) |
| System Memory | Onboard LPDDR4 2400 MHz 4GB (8GB optional) |
| BIOS | AMI UEFI BIOS |
| Storage | 1 x eMMC 64GB onboard |
| Watchdog Timer | 255 levels, 0 to 255 sec. |
| Onboard Graphics | Intel® HD Graphics 505/500 (depends on CPU card) |

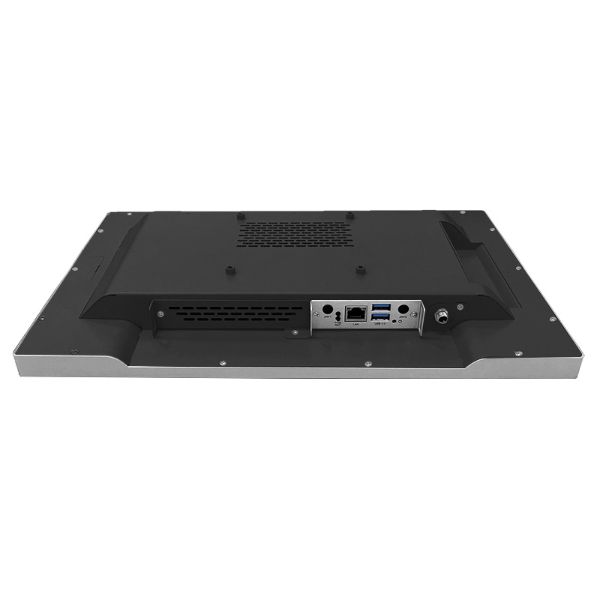

| I/O Connector | Rear Side |
| 1 x GbE LAN |
| 2 x USB 3.0 Type A |
| 2 x SMA antenna reserved hole |
| Expansion Interface | 1 x M.2 Key E 2230 slot (for the Wi-Fi/4G LTE) |
| CPU Card Selection: SDM500-L |
| CPU | Quad-core Intel® i5-8365UE 1.6GHz processor or Dual-core Intel® Celeron® 4305UE 2.0GHz processor (depends on CPU card) |
| System Memory | 2 x 260-pin DDR4-2400 SO-DIMM slot, up to 64GB |
| BIOS | AMI UEFI BIOS |
| Storage | 1 x M.2 Key B 2280 slot |
| Watchdog Timer | 255 levels, 0 to 255 sec. |
| Onboard Graphics | Intel® UHD Graphics 620/610 (depends on CPU card) |

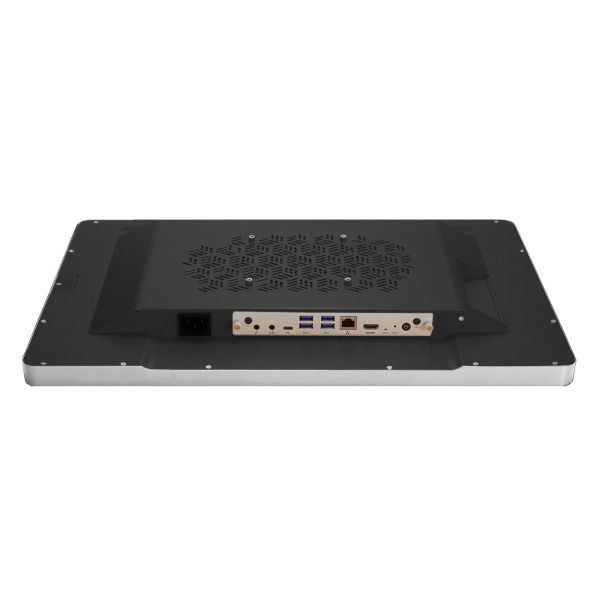

| I/O Connector | Rear Side |
| 1 x Power button with LED 1 x GbE LAN |
| 2 x USB 3.0 Type A 1 x Audio output |
| 1 x Microphone input |
| Expansion Interface | 1 x M.2 Key E 2230 slot (for the Wi-Fi/4G LTE) |
